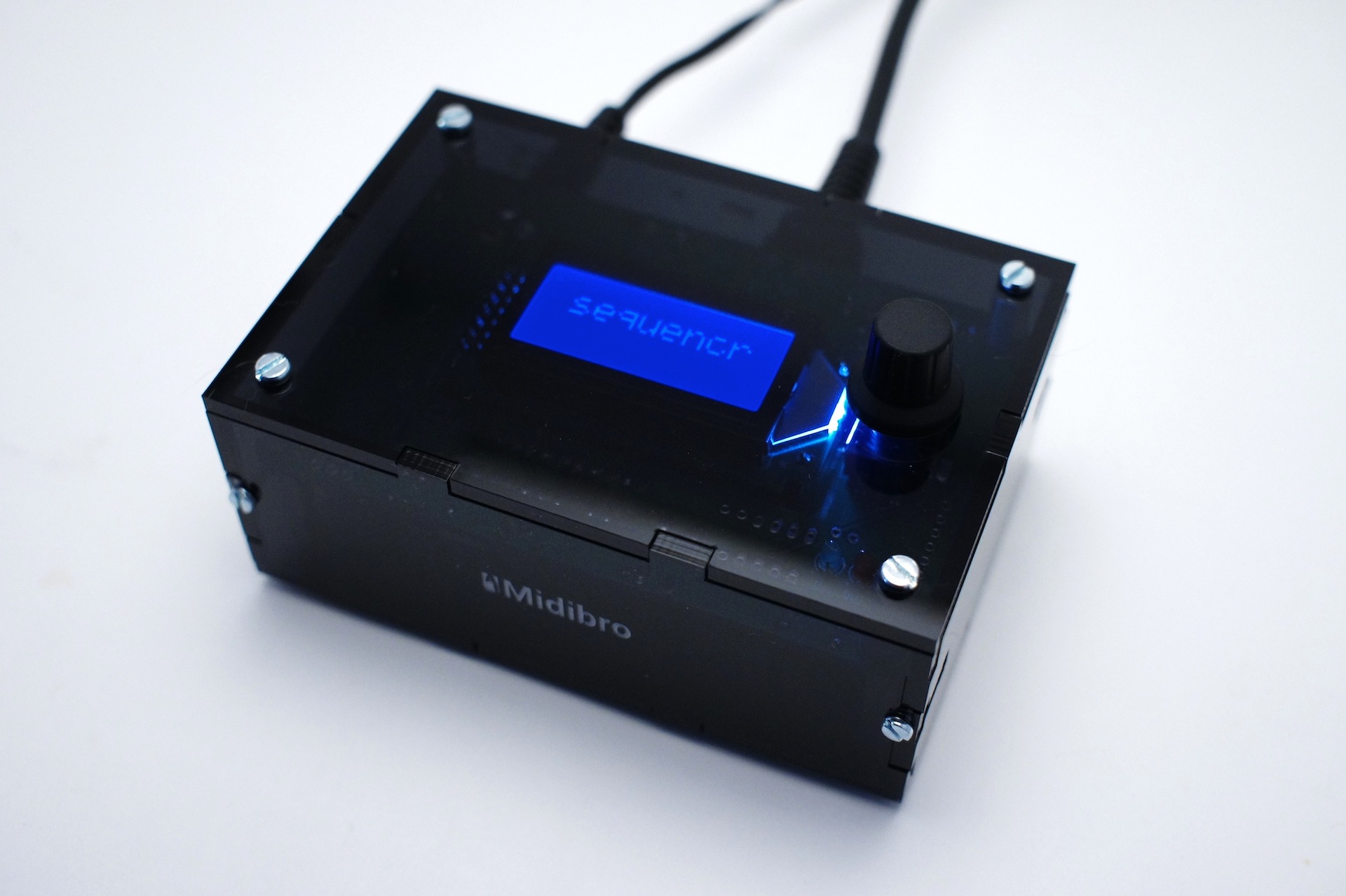

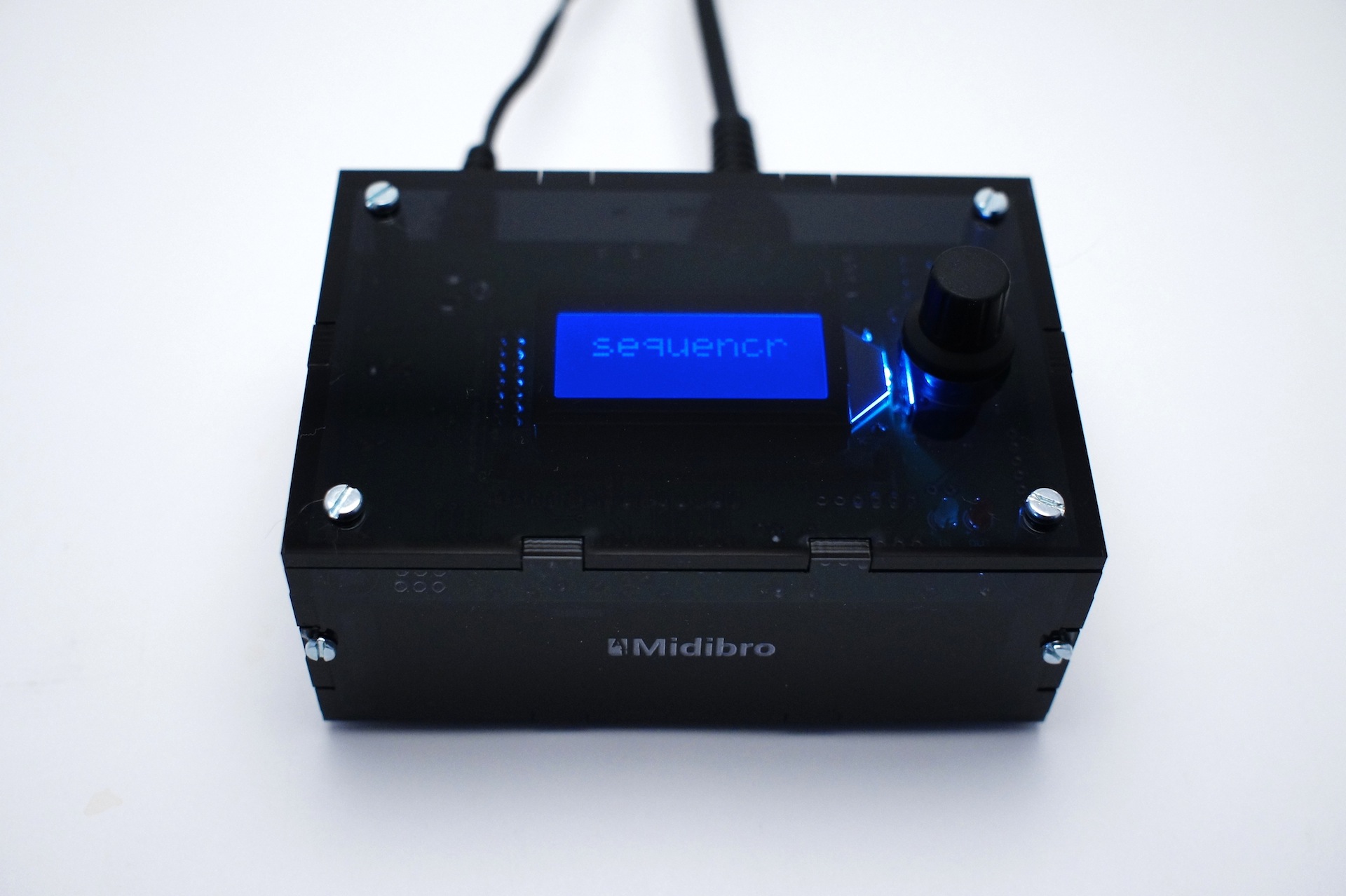

Midibro DIY kit
Compact DIY MIDI event processor. A swiss-army knife for your MIDI setup.
Built upon the acclaimed and now discontinued MIDIpal by Mutable Instruments, the Midibro is a smart and small MIDI processor available as a DIY kit.

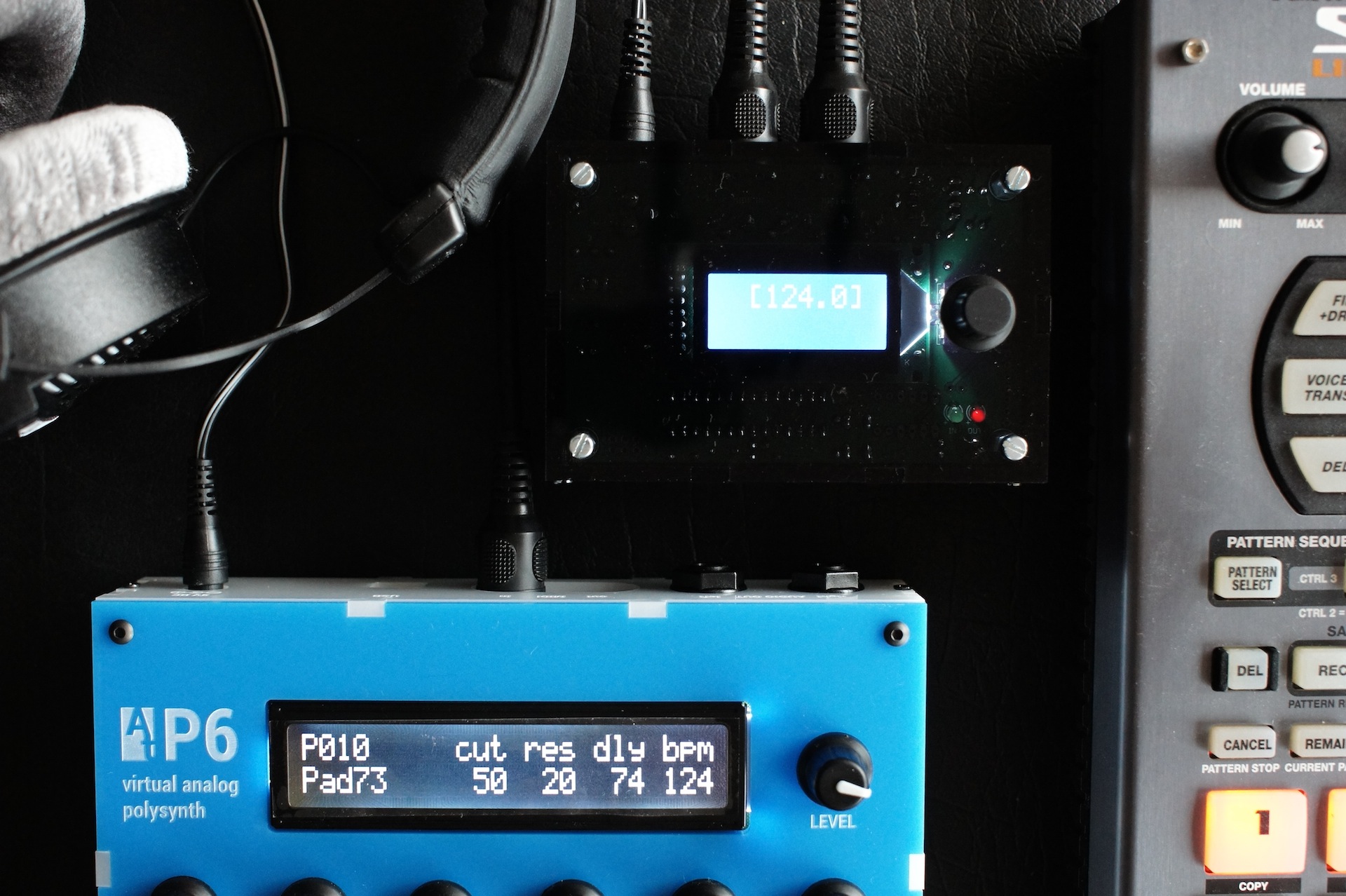

Insert it between a MIDI keyboard (or sequencer) and a MIDI sound module to unleash powerful compositional tools and effects.
The most versatile MIDI event processor
- Arpeggiator: Arpeggiate your chords. 4 modes (up, down, up&down, random), 15 rhythmic patterns, adjustable tempo, rhythmical division, gate and groove, syncable to MIDI clock.
- Step sequencer: Record step-by-step a sequence of up to 128 notes (with ties, rests, slides and accents), and play it back with transposition. As simple and elegant as the classic SH-101 sequencer!
- Randomizer: Randomize note values, velocity, and send random CC at each key press.
- Keyboard-controlled drums sequencer. Control a drum module from a keyboard by triggering and combining patterns — one for each key of a 49 keys keyboard. Create mesmerizing Euclidean drum patterns.
- Chord memory: Enjoy the classic *chord memory* feature of early 80s synths.
- Delay. Up to 32 echo notes added after each note, transposition and velocity adjustment for creating feedback arpeggio effects, syncable to MIDI clock.
- Scale processor. Never miss a note in a solo… The scale mapper replaces each note you play by its nearest neighbour in one of the 25 preset scales. It can also transpose and add voicing/random harmonies.
MIDI message generation
- Clock: Make your MIDI setup groove! MIDI clock source with adjustable tempo and adjustable groove/shuffle/humanization patterns, from super-tight to funky.
- CC-LFO: Generate up to 4 tempo-synced LFOs and cyclic automation movements for any MIDI Control Change (CC) message.
- CC knob: Use the Midibro as a knob to send any CC or NRPN message.
MIDI setup plumbing
- Dispatcher: Play a rack of monophonic synths like a polysynth. The Midibro will automatically route each note of a chord to a different MIDI channel.
- Monitor: Sometimes things go wrong with a MIDI setup… Use the Midibro as a trusted source to display the stream of MIDI messages coming from a cable.
- BPM counter: Use the Midibro to check the accuracy of a MIDI clock signal coming from a sequencer or drum machine.
- Splitter: Control several synths from a single keyboard by routing one half of the keyboard to a MIDI channel, the other half to another.
- Channel filter: Remove all MIDI messages coming from a specific channel.
- Channel Merger: Merge several MIDI channels into a single MIDI stream.
- Clock divider generates a slower subdivision of a MIDI clock.
The Midibro can also store 4 custom MIDI transform setups, each of them made of up to 4 filtering/remapping rules.
- The Midibro is fully compatible with the original MIDIpal, meaning it is able to run all the different available MIDIpal firmwares.
- As a consequence, its source code is open source and easily modifiable… So why not use it to implement your own MIDI transformation features?
- The Midibro is open hardware.
Differences vs original MIDIpal
There are no differences if you plan to use the Midibro “as-is”.
If you plan to hack it, note that there are a few minor differences :
- Only 6 internal analog inputs are available for hacking (vs 8)
- An EEPROM can be added (tho not supplied in the kit) to store more settings (sequences, etc…). Beware: this needs firmware hacks.
Full DIY kit including :
- Bare PCB
- Pre-programmed chip
- All components needed for the build
- See-thru black case

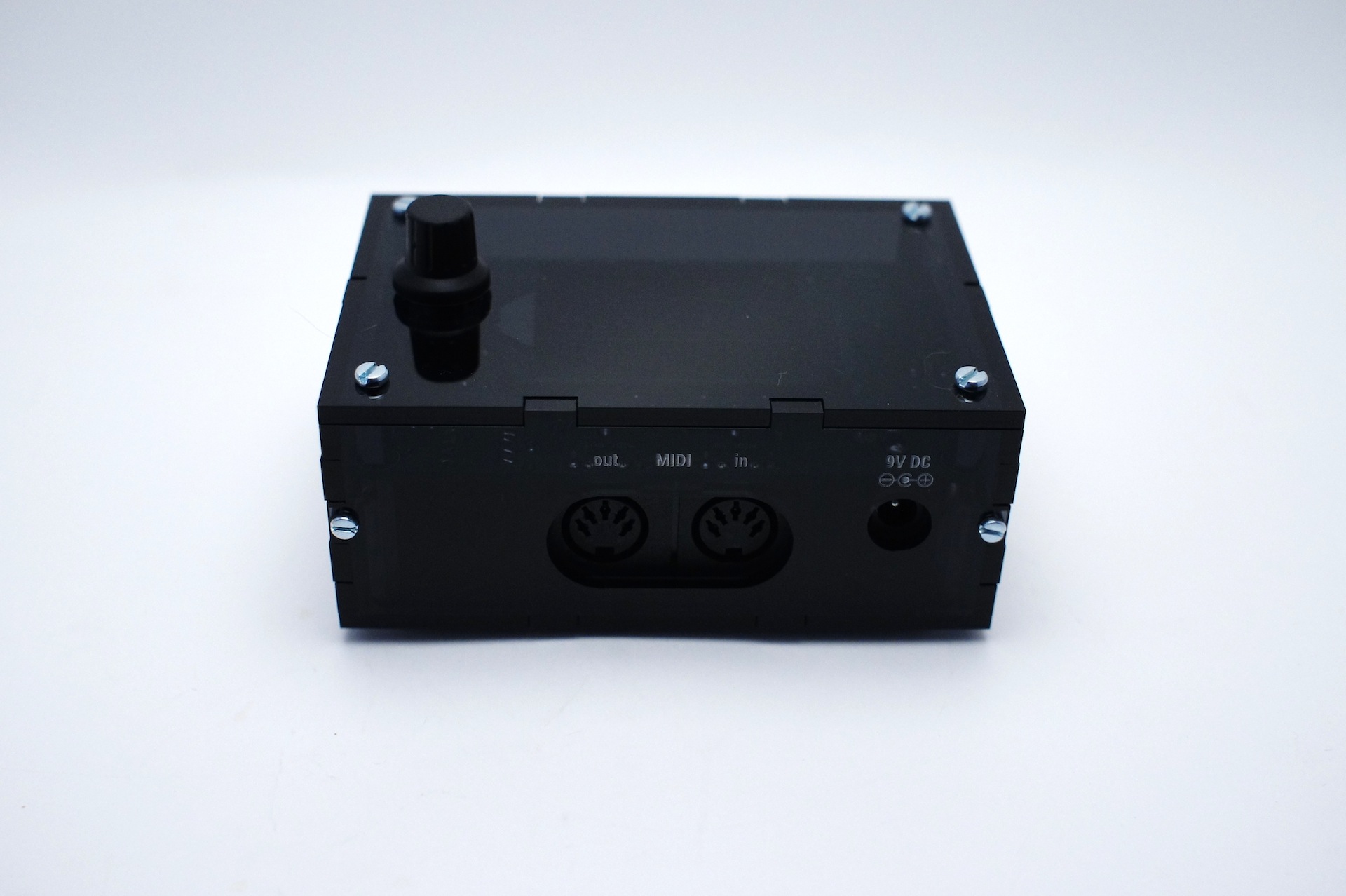

Power supply (2.1mm, 9V, center positive) not included in the kit.
